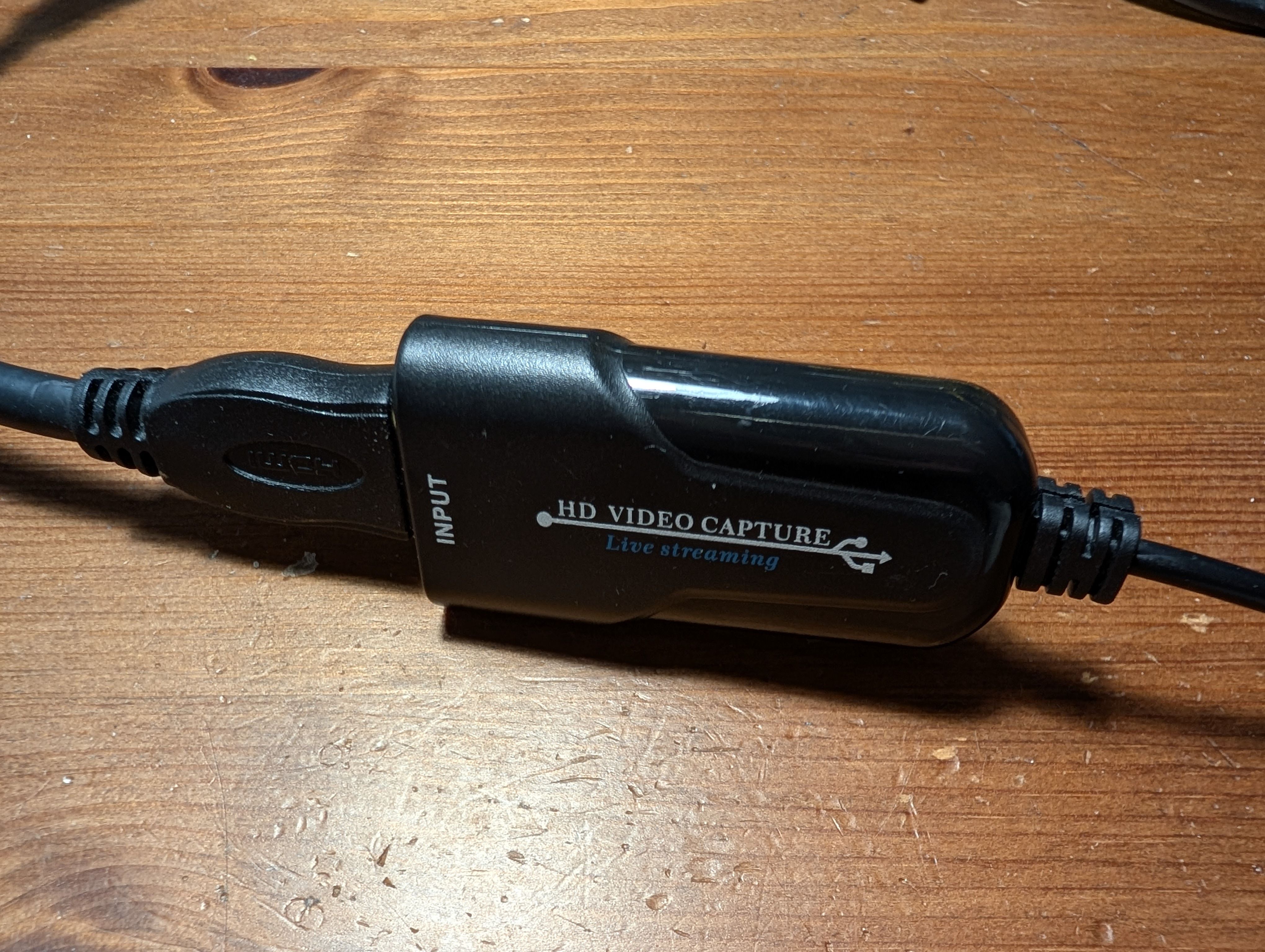

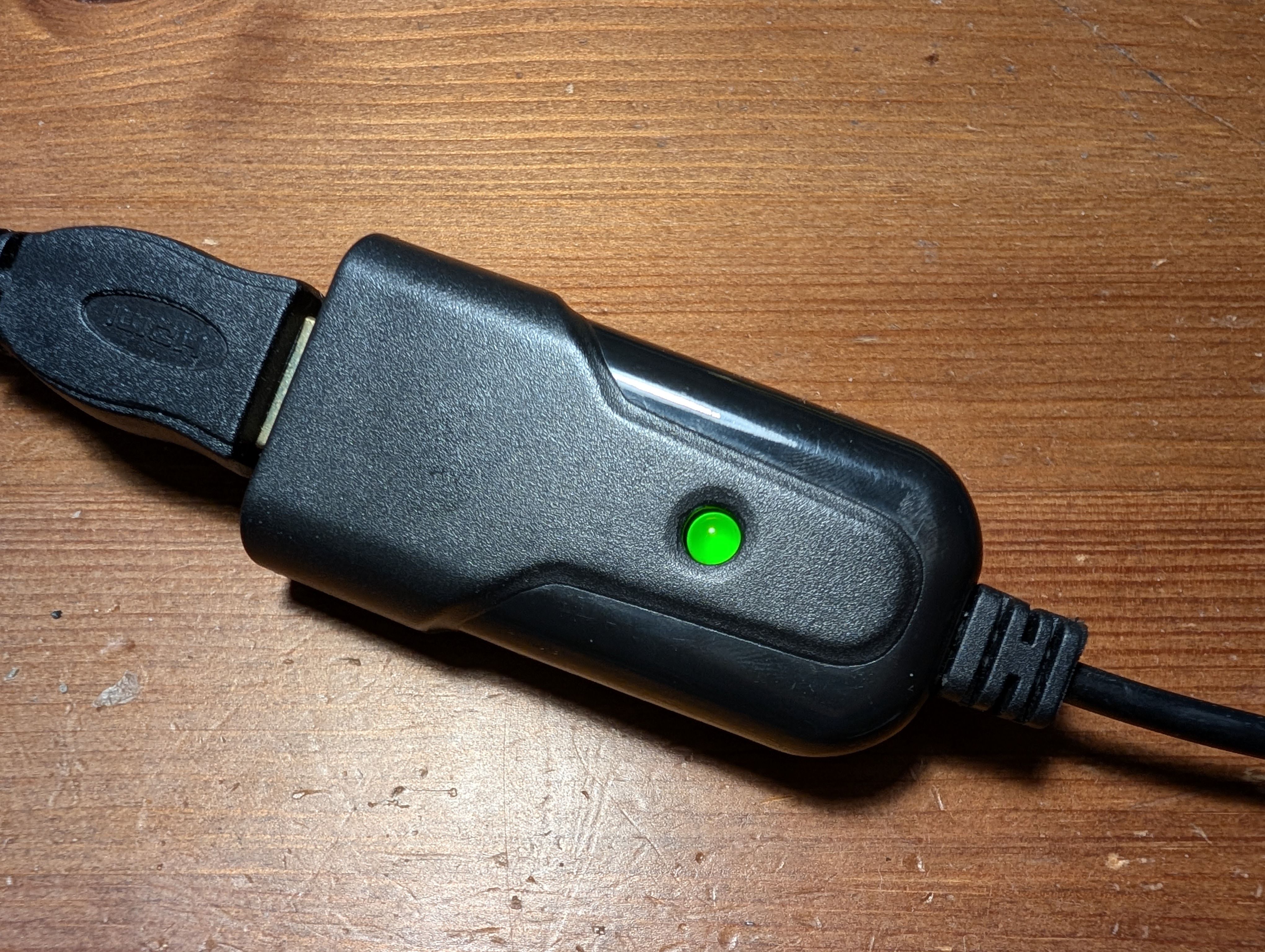

Macrosilicon MS2109 Dongle - The One I Have
This one is old and has very poor capture quality.
It maxes out at a heavily compressed 1920x1080 @ 30fps and the YUV 4:2:2
uncompressed stream did not work for me in 1080p mode.
tl;dr:
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 1920
wHeight 1080
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 4147200
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 1000000
dwFrameInterval( 4) 2000000Here's the ffmpeg output:
$ ffmpeg -f v4l2 -input_format mjpeg -video_size 1920x1080 -i /dev/video5 -c:v copy -an -t 8 /tmp/output.mkv
ffmpeg version n8.1 Copyright (c) 2000-2026 the FFmpeg developers
built with gcc 15.2.1 (GCC) 20260209
libavutil 60. 26.100 / 60. 26.100
libavcodec 62. 28.100 / 62. 28.100
libavformat 62. 12.100 / 62. 12.100
libavdevice 62. 3.100 / 62. 3.100
libavfilter 11. 14.100 / 11. 14.100
libswscale 9. 5.100 / 9. 5.100
libswresample 6. 3.100 / 6. 3.100
Input #0, video4linux2,v4l2, from '/dev/video5':
Duration: N/A, start: 63809.788172, bitrate: N/A
Stream #0:0: Video: mjpeg (Baseline), yuvj422p(pc, bt470bg/unknown/unknown), 1920x1080, 30 fps, 30 tbr, 1000k tbn, start 63809.788172
Stream mapping:
Stream #0:0 -> #0:0 (copy)
Output #0, matroska, to '/tmp/output.mkv':
Metadata:
encoder : Lavf62.12.100
Stream #0:0: Video: mjpeg (Baseline) (MJPG / 0x47504A4D), yuvj422p(pc, bt470bg/unknown/unknown), 1920x1080, q=2-31, 30 fps, 30 tbr, 1k tbn
Press [q] to stop, [?] for help
[out#0/matroska @ 0x55ca84505740] video:26080KiB audio:0KiB subtitle:0KiB other streams:0KiB global headers:0KiB muxing overhead: 0.041526%
frame= 239 fps= 33 q=-1.0 Lsize= 26091KiB time=00:00:08.04 bitrate=26579.0kbits/s speed=1.12x elapsed=0:00:07.15
$ ffprobe /tmp/output.mkv
ffprobe version n8.1 Copyright (c) 2007-2026 the FFmpeg developers
built with gcc 15.2.1 (GCC) 20260209
libavutil 60. 26.100 / 60. 26.100
libavcodec 62. 28.100 / 62. 28.100
libavformat 62. 12.100 / 62. 12.100
libavdevice 62. 3.100 / 62. 3.100
libavfilter 11. 14.100 / 11. 14.100
libswscale 9. 5.100 / 9. 5.100
libswresample 6. 3.100 / 6. 3.100
Input #0, matroska,webm, from '/tmp/output.mkv':
Metadata:
ENCODER : Lavf62.12.100
Duration: 00:00:08.01, start: 0.000000, bitrate: 26687 kb/s
Stream #0:0: Video: mjpeg (Baseline), yuvj422p(pc, bt470bg/unknown/unknown), 1920x1080, 30 fps, 30 tbr, 1k tbn
Metadata:
DURATION : 00:00:08.009000000Here's the capture, remuxed into a standard .mp4 file with MJPEG inside. Download-only, as most browsers can't play MJPEG directly.
20260422-hdmi-to-usb-uvc-dongle-0-video-sample.mp4
The beginning of the capture is all black frames, so we skip them.
# First, see where the black frames end
ffmpeg -i /tmp/output.mkv -vf "blackdetect=d=0.01:pix_th=0.10" -an -f null - 2>&1 | grep blackdetect
[Parsed_blackdetect_0 @ 0x7f03cc003d80] black_start:0 black_end:2.276 black_duration:2.276Then extract the first usable frame.
$ ffmpeg -ss 2.276 -i /tmp/output.mkv -frames:v 1 -c:v png /tmp/frame.png
...
Output #0, image2, to '/tmp/frame.png':
Metadata:
encoder : Lavf62.12.100
Stream #0:0: Video: png, rgb24(pc, gbr/unknown/unknown, progressive), 1920x1080, q=2-31, 200 kb/s, 30 fps, 30 tbn
Metadata:
encoder : Lavc62.28.100 png
DURATION : 00:00:08.009000000
[out#0/image2 @ 0x562fd688a100] video:366KiB audio:0KiB subtitle:0KiB other streams:0KiB global headers:0KiB muxing overhead: unknown
frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.03 bitrate=N/A speed=0.515x elapsed=0:00:00.06The first usable frame of the video looks like this, converted to PNG, so all the compression artifacts are visible.

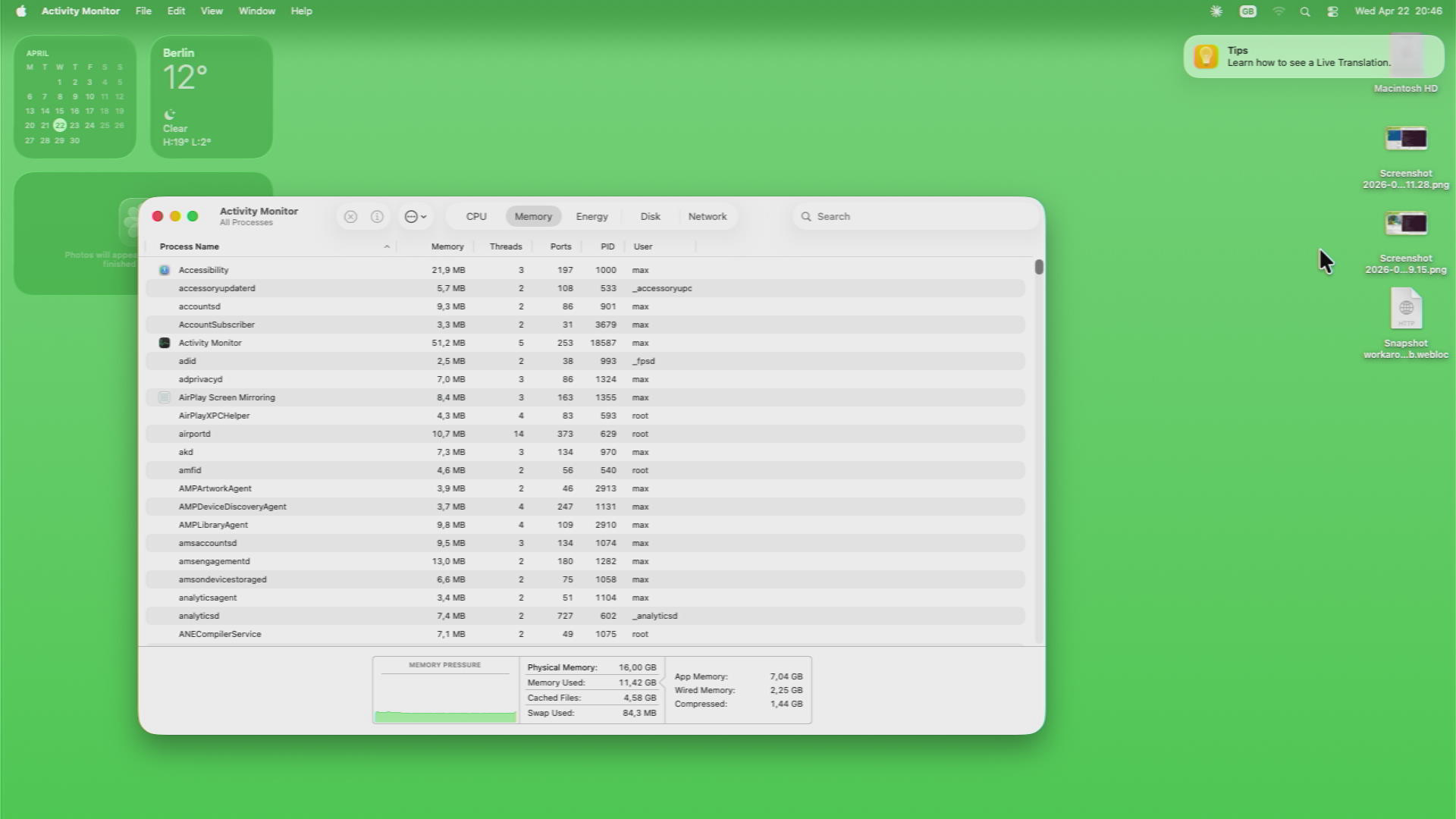

Clearly the coding chip in the dongle captures at a lower resolution or a high compression and everything fuzzes out.
I'd like to find a USB capture card that works better than this, ideally 1080p60.
Technical Readout
Here's what dmesg says about it:
[37833.219860] usb 1-1: new high-speed USB device number 10 using xhci_hcd
[37833.349465] usb 1-1: New USB device found, idVendor=534d, idProduct=2109, bcdDevice=21.00
[37833.349475] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[37833.349479] usb 1-1: Product: USB3.0 HD VIDEO
[37833.349483] usb 1-1: Manufacturer: MACROSILICON
[37833.385869] uvcvideo 1-1:1.0: Found UVC 1.00 device USB3.0 HD VIDEO (534d:2109)
[37833.392342] hid-generic 0003:534D:2109.000B: hiddev96,hidraw1: USB HID v1.10 Device [MACROSILICON USB3.0 HD VIDEO] on usb-0000:64:00.3-1/input4
[37834.127009] usb 1-1: USB disconnect, device number 10Here's what lsusb says about it, it enumerates as a USB2 High Speed device,
which is severely bandwidth constrained.
$ lsusb
Bus 001 Device 026: ID 534d:2109 MacroSilicon USB3.0 HD VIDEO
$ lsusb -tv
/: Bus 001.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/5p, 480M
ID 1d6b:0002 Linux Foundation 2.0 root hub
|__ Port 001: Dev 015, If 0, Class=Video, Driver=uvcvideo, 480M
ID 534d:2109 MacroSilicon
|__ Port 001: Dev 015, If 1, Class=Video, Driver=uvcvideo, 480M
ID 534d:2109 MacroSilicon
|__ Port 001: Dev 015, If 2, Class=Audio, Driver=snd-usb-audio, 480M
ID 534d:2109 MacroSilicon
|__ Port 001: Dev 015, If 3, Class=Audio, Driver=snd-usb-audio, 480M
ID 534d:2109 MacroSilicon
|__ Port 001: Dev 015, If 4, Class=Human Interface Device, Driver=usbhid, 480M
ID 534d:2109 MacroSilicon
$ sudo lsusb -s 001:026 -v
Bus 001 Device 026: ID 534d:2109 MacroSilicon USB3.0 HD VIDEO
Negotiated speed: High Speed (480Mbps)
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
idVendor 0x534d MacroSilicon
idProduct 0x2109 USB3.0 HD VIDEO
bcdDevice 21.00
iManufacturer 1 MACROSILICON
iProduct 2 USB3.0 HD VIDEO
iSerial 0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x04bb
bNumInterfaces 5
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 500mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 2
bFunctionClass 14 Video
bFunctionSubClass 3 Video Interface Collection
bFunctionProtocol 0
iFunction 2 USB3.0 HD VIDEO
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 14 Video
bInterfaceSubClass 1 Video Control
bInterfaceProtocol 0
iInterface 2 USB3.0 HD VIDEO
VideoControl Interface Descriptor:
bLength 13
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdUVC 1.00
wTotalLength 0x0033
dwClockFrequency 48.000000MHz
bInCollection 1
baInterfaceNr( 0) 1
VideoControl Interface Descriptor:
bLength 18
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0201 Camera Sensor
bAssocTerminal 0
iTerminal 0
wObjectiveFocalLengthMin 0
wObjectiveFocalLengthMax 0
wOcularFocalLength 0
bControlSize 3
bmControls 0x00000000
VideoControl Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 5 (PROCESSING_UNIT)
Warning: Descriptor too short
bUnitID 2
bSourceID 1
wMaxMultiplier 0
bControlSize 2
bmControls 0x0000000f
Brightness
Contrast
Hue
Saturation
iProcessing 0
bmVideoStandards 0x09
None
SECAM - 625/50
VideoControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 3
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 2
iTerminal 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
VideoStreaming Interface Descriptor:
bLength 15
bDescriptorType 36
bDescriptorSubtype 1 (INPUT_HEADER)
bNumFormats 2
wTotalLength 0x03b1
bEndpointAddress 0x83 EP 3 IN
bmInfo 0
bTerminalLink 3
bStillCaptureMethod 0
bTriggerSupport 0
bTriggerUsage 0
bControlSize 1
bmaControls( 0) 0
bmaControls( 1) 0
VideoStreaming Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 6 (FORMAT_MJPEG)
bFormatIndex 1
bNumFrameDescriptors 11
bFlags 1
Fixed-size samples: Yes
bDefaultFrameIndex 1
bAspectRatioX 0
bAspectRatioY 0
bmInterlaceFlags 0x00
Interlaced stream or variable: No
Fields per frame: 1 fields
Field 1 first: No
Field pattern: Field 1 only
bCopyProtect 0
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 1920
wHeight 1080
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 4147200
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 1000000
dwFrameInterval( 4) 2000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 2
bmCapabilities 0x00
Still image unsupported
wWidth 1600
wHeight 1200
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 3840000
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 1000000
dwFrameInterval( 4) 2000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 3
bmCapabilities 0x00
Still image unsupported
wWidth 1360
wHeight 768
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 2088960
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 1000000
dwFrameInterval( 4) 2000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 4
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 1024
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 2621440
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 1000000
dwFrameInterval( 4) 2000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 5
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 960
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 2457600
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 200000
dwFrameInterval( 1) 333333
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 1000000
dwFrameInterval( 4) 2000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 6
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 720
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 1843200
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 7
bmCapabilities 0x00
Still image unsupported
wWidth 1024
wHeight 768
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 1572864
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 8
bmCapabilities 0x00
Still image unsupported
wWidth 800
wHeight 600
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 960000
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 9
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 576
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 829440
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 10
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 480
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 691200
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 11
bmCapabilities 0x00
Still image unsupported
wWidth 640
wHeight 480
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 614400
dwDefaultFrameInterval 333333
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 13 (COLORFORMAT)
bColorPrimaries 1 (BT.709,sRGB)
bTransferCharacteristics 1 (BT.709)
bMatrixCoefficients 4 (SMPTE 170M (BT.601))
VideoStreaming Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 4 (FORMAT_UNCOMPRESSED)
bFormatIndex 2
bNumFrameDescriptors 11
guidFormat {32595559-0000-0010-8000-00aa00389b71}
bBitsPerPixel 16
bDefaultFrameIndex 6
bAspectRatioX 0
bAspectRatioY 0
bmInterlaceFlags 0x00
Interlaced stream or variable: No
Fields per frame: 2 fields
Field 1 first: No
Field pattern: Field 1 only
bCopyProtect 0
VideoStreaming Interface Descriptor:
bLength 30
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 1920
wHeight 1080
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 4147200
dwDefaultFrameInterval 2000000
bFrameIntervalType 1
dwFrameInterval( 0) 2000000
VideoStreaming Interface Descriptor:
bLength 30
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 2
bmCapabilities 0x00
Still image unsupported
wWidth 1600
wHeight 1200
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 3840000
dwDefaultFrameInterval 2000000
bFrameIntervalType 1
dwFrameInterval( 0) 2000000
VideoStreaming Interface Descriptor:
bLength 30
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 3
bmCapabilities 0x00
Still image unsupported
wWidth 1360
wHeight 768
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 2088960
dwDefaultFrameInterval 1250000
bFrameIntervalType 1
dwFrameInterval( 0) 1250000
VideoStreaming Interface Descriptor:
bLength 30
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 4
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 1024
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 2621440
dwDefaultFrameInterval 1250000
bFrameIntervalType 1
dwFrameInterval( 0) 1250000
VideoStreaming Interface Descriptor:
bLength 30
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 5
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 960
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 2457600
dwDefaultFrameInterval 1250000
bFrameIntervalType 1
dwFrameInterval( 0) 1250000
VideoStreaming Interface Descriptor:
bLength 30
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 6
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 720
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 1843200
dwDefaultFrameInterval 1000000
bFrameIntervalType 1
dwFrameInterval( 0) 1000000
VideoStreaming Interface Descriptor:
bLength 30
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 7
bmCapabilities 0x00
Still image unsupported
wWidth 1024
wHeight 768
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 1572864
dwDefaultFrameInterval 1000000
bFrameIntervalType 1
dwFrameInterval( 0) 1000000
VideoStreaming Interface Descriptor:
bLength 38
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 8
bmCapabilities 0x00
Still image unsupported
wWidth 800
wHeight 600
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 960000
dwDefaultFrameInterval 500000
bFrameIntervalType 3
dwFrameInterval( 0) 500000
dwFrameInterval( 1) 1000000
dwFrameInterval( 2) 2000000
VideoStreaming Interface Descriptor:
bLength 42
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 9
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 576
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 829440
dwDefaultFrameInterval 400000
bFrameIntervalType 4
dwFrameInterval( 0) 400000
dwFrameInterval( 1) 500000
dwFrameInterval( 2) 1000000
dwFrameInterval( 3) 2000000
VideoStreaming Interface Descriptor:
bLength 42
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 10
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 480
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 691200
dwDefaultFrameInterval 333333
bFrameIntervalType 4
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 500000
dwFrameInterval( 2) 1000000
dwFrameInterval( 3) 2000000
VideoStreaming Interface Descriptor:
bLength 42
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 11
bmCapabilities 0x00
Still image unsupported
wWidth 640
wHeight 480
dwMinBitRate 768000
dwMaxBitRate 196608000
dwMaxVideoFrameBufferSize 614400
dwDefaultFrameInterval 333333
bFrameIntervalType 4
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 500000
dwFrameInterval( 2) 1000000
dwFrameInterval( 3) 2000000
VideoStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 13 (COLORFORMAT)
bColorPrimaries 1 (BT.709,sRGB)
bTransferCharacteristics 1 (BT.709)
bMatrixCoefficients 4 (SMPTE 170M (BT.601))
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0320 1x 800 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 2
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0c00 2x 1024 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 3
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x1400 3x 1024 bytes
bInterval 1
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 2
bInterfaceCount 2
bFunctionClass 1 Audio
bFunctionSubClass 1 Control Device
bFunctionProtocol 0
iFunction 4 USB3.0 AUDIO
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 1 Control Device
bInterfaceProtocol 0
iInterface 4 USB3.0 AUDIO
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdADC 1.00
wTotalLength 0x0026
bInCollection 1
baInterfaceNr(0) 3
AudioControl Interface Descriptor:
bLength 12
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0602 Digital Audio Interface
bAssocTerminal 0
bNrChannels 2
wChannelConfig 0x0003
Left Front (L)
Right Front (R)
iChannelNames 0
iTerminal 0
AudioControl Interface Descriptor:
bLength 8
bDescriptorType 36
bDescriptorSubtype 6 (FEATURE_UNIT)
bUnitID 2
bSourceID 1
bControlSize 1
bmaControls(0) 0x01
Mute Control
iFeature 0
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 3
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 2
iTerminal 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 4 USB3.0 AUDIO
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 4 USB3.0 AUDIO
AudioStreaming Interface Descriptor:
bLength 7
bDescriptorType 36
bDescriptorSubtype 1 (AS_GENERAL)
bTerminalLink 3
bDelay 0 frames
wFormatTag 0x0001 PCM
AudioStreaming Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 2 (FORMAT_TYPE)
bFormatType 1 (FORMAT_TYPE_I)
bNrChannels 1
bSubframeSize 2
bBitResolution 16
bSamFreqType 1 Discrete
tSamFreq[ 0] 96000
Endpoint Descriptor:
bLength 9
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0100 1x 256 bytes
bInterval 4
bRefresh 0
bSynchAddress 0
AudioStreaming Endpoint Descriptor:
bLength 7
bDescriptorType 37
bDescriptorSubtype 1 (EP_GENERAL)
bmAttributes 0x00
bLockDelayUnits 0 Undefined
wLockDelay 0x0000
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 4
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 0 [unknown]
bInterfaceProtocol 0
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 1.10
bCountryCode 33 US
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 23
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x84 EP 4 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0004 1x 4 bytes
bInterval 16
Device Qualifier (for other device speed):
bLength 10
bDescriptorType 6
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
bNumConfigurations 1
Device Status: 0x0000
(Bus Powered)Funny that the product string is USB3.0 HD VIDEO but it only runs at 480Mbps.
Here's what v4l2-ctl says about the device:
$ v4l2-ctl --list-devices
USB3.0 HD VIDEO: USB3.0 HD VIDE (usb-0000:64:00.3-2):
/dev/video4
/dev/video5
/dev/media2
$ v4l2-ctl -d /dev/video4 --list-formats
ioctl: VIDIOC_ENUM_FMT
Type: Video Capture
[0]: 'MJPG' (Motion-JPEG, compressed)
[1]: 'YUYV' (YUYV 4:2:2)
$ v4l2-ctl -d /dev/video5 --list-formats
ioctl: VIDIOC_ENUM_FMT
Type: Video Capture
$ v4l2-ctl -d /dev/video4 --all
Driver Info:
Driver name : uvcvideo
Card type : USB3.0 HD VIDEO: USB3.0 HD VIDE
Bus info : usb-0000:64:00.3-2
Driver version : 6.19.12
Capabilities : 0x84a00001
Video Capture
Metadata Capture
Streaming
Extended Pix Format
Device Capabilities
Device Caps : 0x04200001
Video Capture
Streaming
Extended Pix Format
Media Driver Info:
Driver name : uvcvideo
Model : USB3.0 HD VIDEO: USB3.0 HD VIDE
Serial :
Bus info : usb-0000:64:00.3-2
Media version : 6.19.12
Hardware revision: 0x00002100 (8448)
Driver version : 6.19.12
Interface Info:
ID : 0x03000002
Type : V4L Video
Entity Info:
ID : 0x00000001 (1)
Name : USB3.0 HD VIDEO: USB3.0 HD VIDE
Function : V4L2 I/O
Flags : default
Pad 0x01000007 : 0: Sink
Link 0x0200000d: from remote pad 0x100000a of entity 'Processing 2' (Video Pixel Formatter): Data, Enabled, Immutable
Priority: 2
Video input : 0 (Camera 1: ok)
Format Video Capture:
Width/Height : 1920/1080
Pixel Format : 'MJPG' (Motion-JPEG)
Field : None
Bytes per Line : 0
Size Image : 4147200
Colorspace : sRGB
Transfer Function : Rec. 709
YCbCr/HSV Encoding: ITU-R 601
Quantization : Default (maps to Full Range)
Flags :
Crop Capability Video Capture:
Bounds : Left 0, Top 0, Width 1920, Height 1080
Default : Left 0, Top 0, Width 1920, Height 1080
Pixel Aspect: 1/1
Selection Video Capture: crop_default, Left 0, Top 0, Width 1920, Height 1080, Flags:
Selection Video Capture: crop_bounds, Left 0, Top 0, Width 1920, Height 1080, Flags:
Streaming Parameters Video Capture:
Capabilities : timeperframe
Frames per second: 30.000 (30/1)
Read buffers : 0
User Controls
brightness 0x00980900 (int) : min=-128 max=127 step=1 default=-11 value=-11 flags=has-min-max
contrast 0x00980901 (int) : min=0 max=255 step=1 default=148 value=148 flags=has-min-max
saturation 0x00980902 (int) : min=0 max=255 step=1 default=180 value=180 flags=has-min-max
hue 0x00980903 (int) : min=-128 max=127 step=1 default=0 value=0 flags=has-min-max
$ v4l2-ctl -d /dev/video5 --all
Driver Info:
Driver name : uvcvideo
Card type : USB3.0 HD VIDEO: USB3.0 HD VIDE
Bus info : usb-0000:64:00.3-2
Driver version : 6.19.12
Capabilities : 0x84a00001
Video Capture
Metadata Capture
Streaming
Extended Pix Format
Device Capabilities
Device Caps : 0x04a00000
Metadata Capture
Streaming
Extended Pix Format
Media Driver Info:
Driver name : uvcvideo
Model : USB3.0 HD VIDEO: USB3.0 HD VIDE
Serial :
Bus info : usb-0000:64:00.3-2
Media version : 6.19.12
Hardware revision: 0x00002100 (8448)
Driver version : 6.19.12
Interface Info:
ID : 0x03000005
Type : V4L Video
Entity Info:
ID : 0x00000004 (4)
Name : USB3.0 HD VIDEO: USB3.0 HD VIDE
Function : V4L2 I/O
Priority: 2
Format Metadata Capture:
Sample Format : 'UVCH' (UVC Payload Header Metadata)
Buffer Size : 10240
