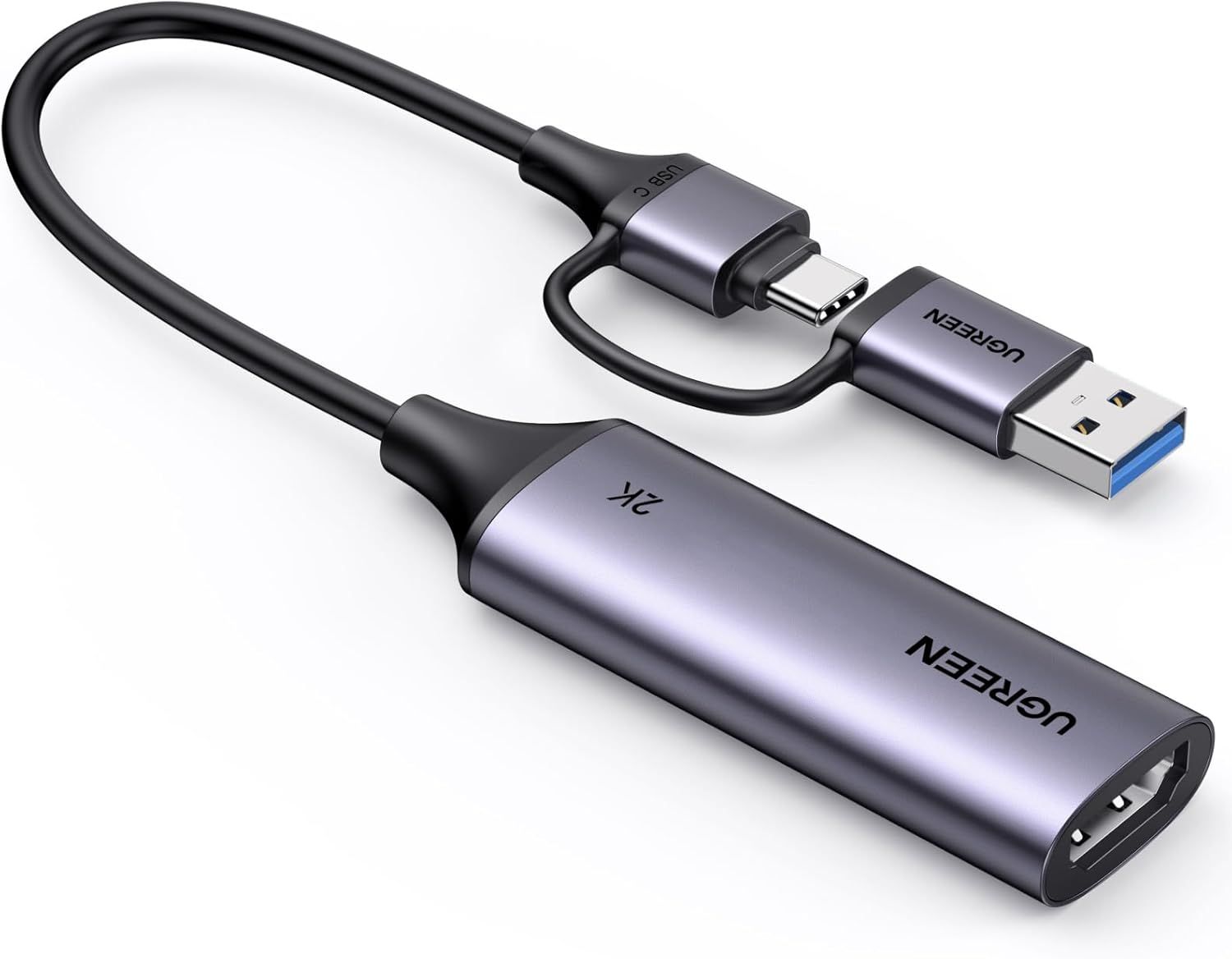

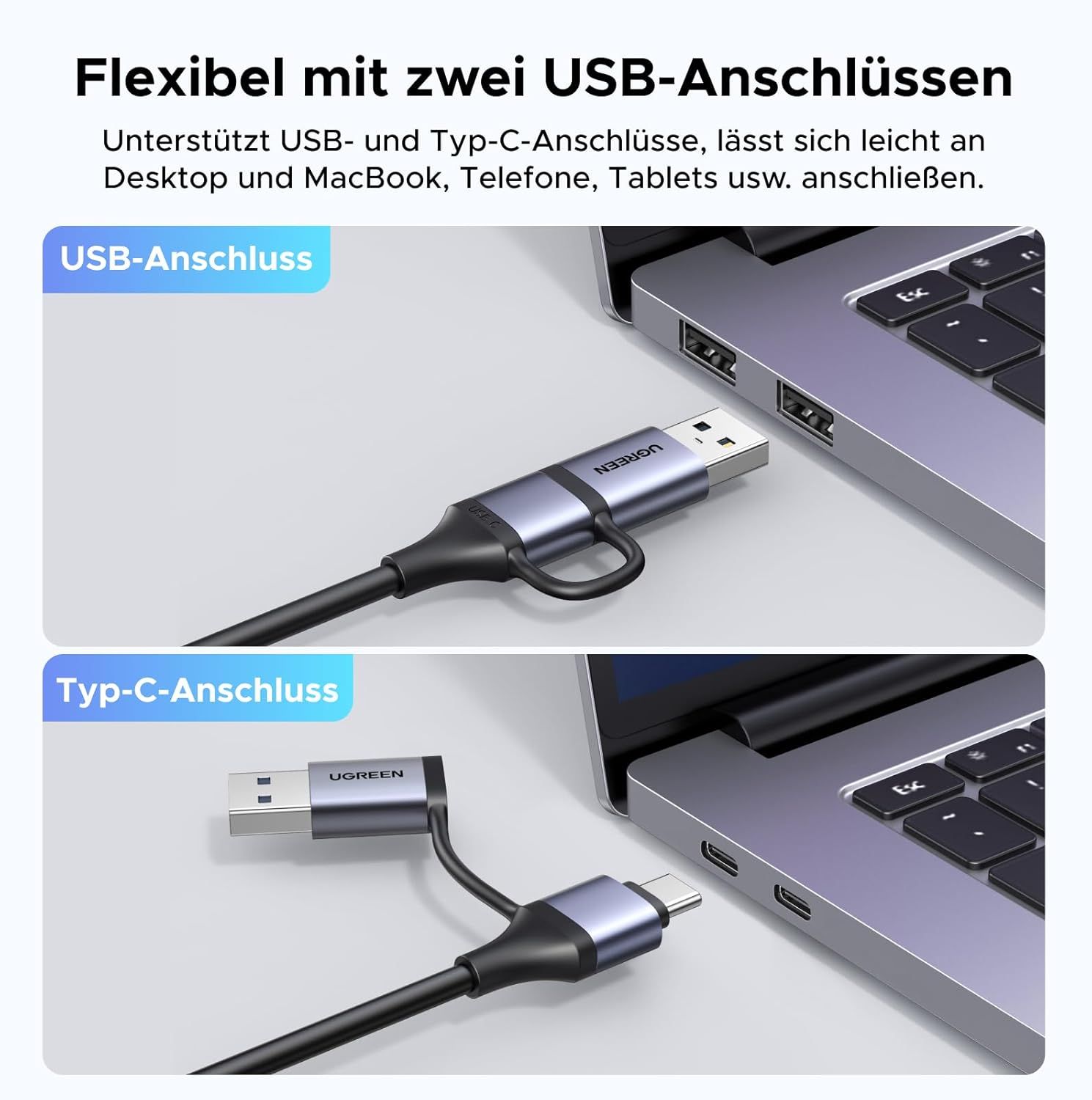

Macrosilicon MS2130(S?) Dongle, Tailed, USB-C / A Plug, No Loop Out - This Is The One I Bought
I picked up one of these for 18.98€ on Amazon, which had a better selection and clearer information about Ugreen device models than on eBay.

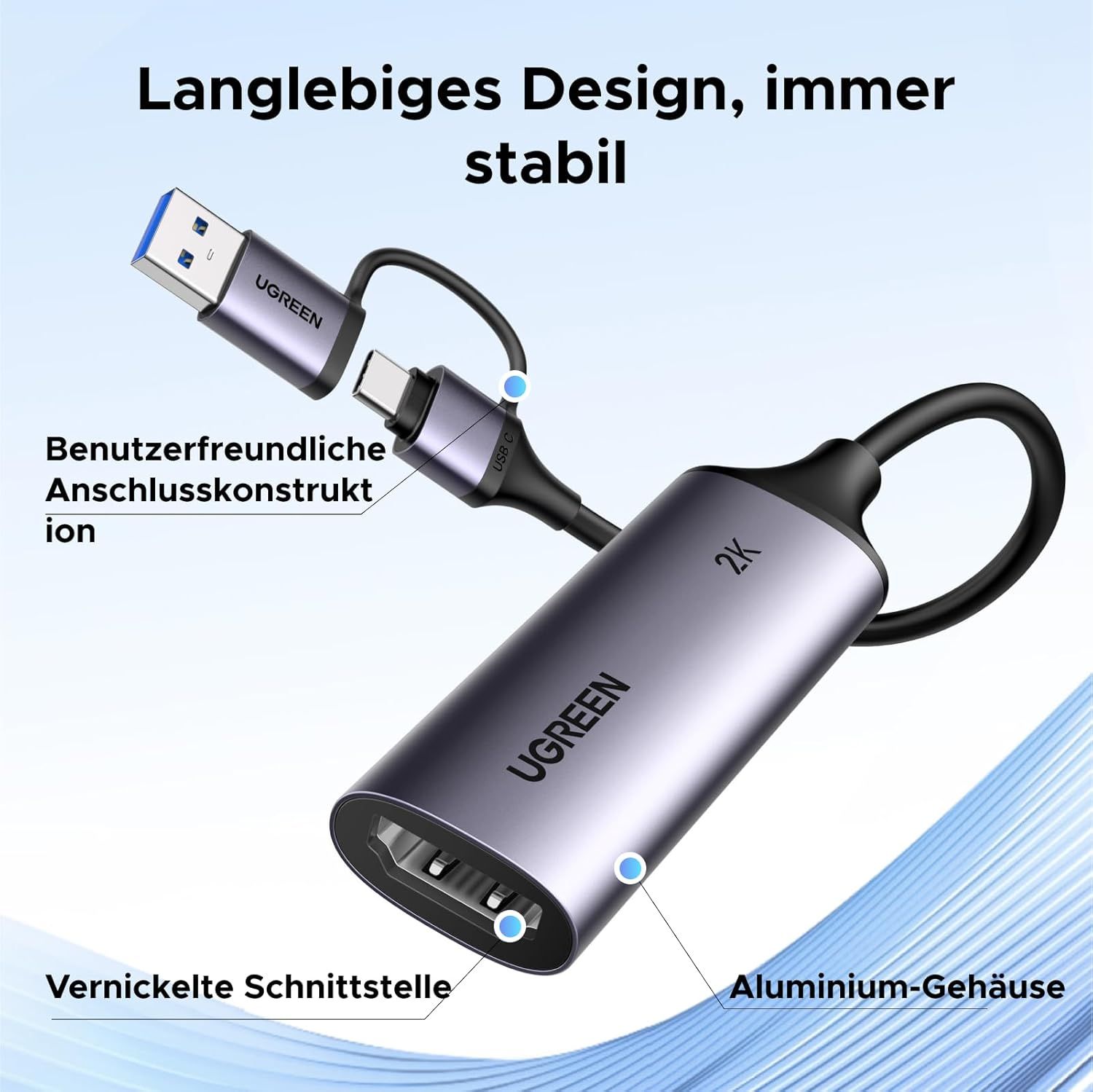

The version I have does not have HDMI loop-out, it's a single input endpoint.
This is the highest-resolution Macrosilicon device on the market as of May 2026.
tl;dr (1440p30 YUV422 output):
VideoStreaming Interface Descriptor:
bLength 38
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 2560
wHeight 1440
dwMinBitRate 589824000
dwMaxBitRate 1769472000
dwMaxVideoFrameBufferSize 7372800
dwDefaultFrameInterval 333333
bFrameIntervalType 3
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 500000
dwFrameInterval( 2) 1000000I haven't cracked open the physical case to look at the circuit board... yet.
Technical Readout
Here's what dmesg says:
[340099.048808] usb 2-2: new SuperSpeed USB device number 2 using xhci_hcd
[340099.064921] usb 2-2: LPM exit latency is zeroed, disabling LPM.
[340099.074025] usb 2-2: New USB device found, idVendor=2b89, idProduct=5389, bcdDevice=31.00
[340099.074031] usb 2-2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[340099.074035] usb 2-2: Product: UGREEN 15389
[340099.074038] usb 2-2: Manufacturer: MACROSILICON
[340099.074040] usb 2-2: SerialNumber: 20230204
[340099.117294] uvcvideo 2-2:1.0: Found UVC 1.00 device UGREEN 15389 (2b89:5389)
[340099.180799] hid-generic 0003:2B89:5389.0007: hiddev96,hidraw0: USB HID v1.10 Device [MACROSILICON UGREEN 15389] on usb-0000:64:00.3-2/input4Here's what lsusb says:
$ lsusb -tv
/: Bus 002.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 10000M
ID 1d6b:0003 Linux Foundation 3.0 root hub
|__ Port 002: Dev 002, If 0, Class=Video, Driver=uvcvideo, 5000M
ID 2b89:5389
|__ Port 002: Dev 002, If 1, Class=Video, Driver=uvcvideo, 5000M
ID 2b89:5389
|__ Port 002: Dev 002, If 2, Class=Audio, Driver=snd-usb-audio, 5000M
ID 2b89:5389
|__ Port 002: Dev 002, If 3, Class=Audio, Driver=snd-usb-audio, 5000M
ID 2b89:5389
|__ Port 002: Dev 002, If 4, Class=Human Interface Device, Driver=usbhid, 5000M
ID 2b89:5389
$ sudo lsusb -v -s 002:002
Bus 002 Device 002: ID 2b89:5389 MACROSILICON UGREEN 15389
Negotiated speed: SuperSpeed (5Gbps)
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 3.20
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 9
idVendor 0x2b89 MACROSILICON
idProduct 0x5389 UGREEN 15389
bcdDevice 31.00
iManufacturer 1 MACROSILICON
iProduct 2 UGREEN 15389
iSerial 3 20230204
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0518
bNumInterfaces 5
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 512mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 2
bFunctionClass 14 Video
bFunctionSubClass 3 Video Interface Collection
bFunctionProtocol 0
iFunction 2 UGREEN 15389
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 14 Video
bInterfaceSubClass 1 Video Control
bInterfaceProtocol 0
iInterface 2 UGREEN 15389
VideoControl Interface Descriptor:
bLength 13
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdUVC 1.00
wTotalLength 0x0033
dwClockFrequency 125.000000MHz
bInCollection 1
baInterfaceNr( 0) 1
VideoControl Interface Descriptor:
bLength 18
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0201 Camera Sensor
bAssocTerminal 0
iTerminal 0
wObjectiveFocalLengthMin 0
wObjectiveFocalLengthMax 0
wOcularFocalLength 0
bControlSize 3
bmControls 0x00000000
VideoControl Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 5 (PROCESSING_UNIT)
Warning: Descriptor too short
bUnitID 2
bSourceID 1
wMaxMultiplier 16384
bControlSize 2
bmControls 0x0000000f
Brightness
Contrast
Hue
Saturation
iProcessing 0
bmVideoStandards 0x09
None
SECAM - 625/50
VideoControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 3
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 2
iTerminal 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
VideoStreaming Interface Descriptor:
bLength 15
bDescriptorType 36
bDescriptorSubtype 1 (INPUT_HEADER)
bNumFormats 2
wTotalLength 0x0425
bEndpointAddress 0x83 EP 3 IN
bmInfo 0
bTerminalLink 3
bStillCaptureMethod 0
bTriggerSupport 0
bTriggerUsage 0
bControlSize 1
bmaControls( 0) 0
bmaControls( 1) 0
VideoStreaming Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 4 (FORMAT_UNCOMPRESSED)
bFormatIndex 2
bNumFrameDescriptors 11
guidFormat {32595559-0000-0010-8000-00aa00389b71}
bBitsPerPixel 16
bDefaultFrameIndex 2
bAspectRatioX 0
bAspectRatioY 0
bmInterlaceFlags 0x00
Interlaced stream or variable: No
Fields per frame: 2 fields
Field 1 first: No
Field pattern: Field 1 only
bCopyProtect 0
VideoStreaming Interface Descriptor:
bLength 38
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 2560
wHeight 1440
dwMinBitRate 589824000
dwMaxBitRate 1769472000
dwMaxVideoFrameBufferSize 7372800
dwDefaultFrameInterval 333333
bFrameIntervalType 3
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 500000
dwFrameInterval( 2) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 2
bmCapabilities 0x00
Still image unsupported
wWidth 1920
wHeight 1080
dwMinBitRate 331776000
dwMaxBitRate 1990656000
dwMaxVideoFrameBufferSize 4147200
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 3
bmCapabilities 0x00
Still image unsupported
wWidth 1600
wHeight 1200
dwMinBitRate 307200000
dwMaxBitRate 1843200000
dwMaxVideoFrameBufferSize 3840000
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 4
bmCapabilities 0x00
Still image unsupported
wWidth 1360
wHeight 768
dwMinBitRate 167116800
dwMaxBitRate 1002700800
dwMaxVideoFrameBufferSize 2088960
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 5
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 1024
dwMinBitRate 209715200
dwMaxBitRate 1258291200
dwMaxVideoFrameBufferSize 2621440
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 6
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 960
dwMinBitRate 196608000
dwMaxBitRate 1179648000
dwMaxVideoFrameBufferSize 2457600
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 7
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 720
dwMinBitRate 147456000
dwMaxBitRate 884736000
dwMaxVideoFrameBufferSize 1843200
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 8
bmCapabilities 0x00
Still image unsupported
wWidth 1024
wHeight 768
dwMinBitRate 125829120
dwMaxBitRate 754974720
dwMaxVideoFrameBufferSize 1572864
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 9
bmCapabilities 0x00
Still image unsupported
wWidth 800
wHeight 600
dwMinBitRate 76800000
dwMaxBitRate 460800000
dwMaxVideoFrameBufferSize 960000
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 10
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 576
dwMinBitRate 66355200
dwMaxBitRate 398131200
dwMaxVideoFrameBufferSize 829440
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 11
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 480
dwMinBitRate 55296000
dwMaxBitRate 331776000
dwMaxVideoFrameBufferSize 691200
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 13 (COLORFORMAT)
bColorPrimaries 1 (BT.709,sRGB)
bTransferCharacteristics 1 (BT.709)
bMatrixCoefficients 4 (SMPTE 170M (BT.601))
VideoStreaming Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 6 (FORMAT_MJPEG)
bFormatIndex 1
bNumFrameDescriptors 11
bFlags 1
Fixed-size samples: Yes
bDefaultFrameIndex 2
bAspectRatioX 0
bAspectRatioY 0
bmInterlaceFlags 0x00
Interlaced stream or variable: No
Fields per frame: 1 fields
Field 1 first: No
Field pattern: Field 1 only
bCopyProtect 0
VideoStreaming Interface Descriptor:
bLength 38
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 2560
wHeight 1440
dwMinBitRate 589824000
dwMaxBitRate 1769472000
dwMaxVideoFrameBufferSize 7372800
dwDefaultFrameInterval 333333
bFrameIntervalType 3
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 500000
dwFrameInterval( 2) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 2
bmCapabilities 0x00
Still image unsupported
wWidth 1920
wHeight 1080
dwMinBitRate 331776000
dwMaxBitRate 1990656000
dwMaxVideoFrameBufferSize 4147200
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 3
bmCapabilities 0x00
Still image unsupported
wWidth 1600
wHeight 1200
dwMinBitRate 307200000
dwMaxBitRate 1843200000
dwMaxVideoFrameBufferSize 3840000
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 4
bmCapabilities 0x00
Still image unsupported
wWidth 1360
wHeight 768
dwMinBitRate 167116800
dwMaxBitRate 1002700800
dwMaxVideoFrameBufferSize 2088960
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 5
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 1024
dwMinBitRate 209715200
dwMaxBitRate 1258291200
dwMaxVideoFrameBufferSize 2621440
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 6
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 960
dwMinBitRate 196608000
dwMaxBitRate 1179648000
dwMaxVideoFrameBufferSize 2457600
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 7
bmCapabilities 0x00
Still image unsupported
wWidth 1280
wHeight 720
dwMinBitRate 147456000
dwMaxBitRate 884736000
dwMaxVideoFrameBufferSize 1843200
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 8
bmCapabilities 0x00
Still image unsupported
wWidth 1024
wHeight 768
dwMinBitRate 125829120
dwMaxBitRate 754974720
dwMaxVideoFrameBufferSize 1572864
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 9
bmCapabilities 0x00
Still image unsupported
wWidth 800
wHeight 600
dwMinBitRate 76800000
dwMaxBitRate 460800000
dwMaxVideoFrameBufferSize 960000
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 10
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 576
dwMinBitRate 66355200
dwMaxBitRate 398131200
dwMaxVideoFrameBufferSize 829440
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 46
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 11
bmCapabilities 0x00
Still image unsupported
wWidth 720
wHeight 480
dwMinBitRate 55296000
dwMaxBitRate 331776000
dwMaxVideoFrameBufferSize 691200
dwDefaultFrameInterval 166666
bFrameIntervalType 5
dwFrameInterval( 0) 166666
dwFrameInterval( 1) 200000
dwFrameInterval( 2) 333333
dwFrameInterval( 3) 500000
dwFrameInterval( 4) 1000000
VideoStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 13 (COLORFORMAT)
bColorPrimaries 1 (BT.709,sRGB)
bTransferCharacteristics 1 (BT.709)
bMatrixCoefficients 4 (SMPTE 170M (BT.601))
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 15
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 2
bInterfaceCount 2
bFunctionClass 1 Audio
bFunctionSubClass 2 Streaming
bFunctionProtocol 0
iFunction 4 UGREEN 15389
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 1 Control Device
bInterfaceProtocol 0
iInterface 4 UGREEN 15389
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdADC 1.00
wTotalLength 0x0026
bInCollection 1
baInterfaceNr(0) 3
AudioControl Interface Descriptor:
bLength 12
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0602 Digital Audio Interface
bAssocTerminal 0
bNrChannels 2
wChannelConfig 0x0003
Left Front (L)
Right Front (R)
iChannelNames 0
iTerminal 0
AudioControl Interface Descriptor:
bLength 8
bDescriptorType 36
bDescriptorSubtype 6 (FEATURE_UNIT)
bUnitID 2
bSourceID 1
bControlSize 1
bmaControls(0) 0x01
Mute Control
iFeature 0
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 3
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 2
iTerminal 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 4 UGREEN 15389
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 4 UGREEN 15389
AudioStreaming Interface Descriptor:
bLength 7
bDescriptorType 36
bDescriptorSubtype 1 (AS_GENERAL)
bTerminalLink 3
bDelay 0 frames
wFormatTag 0x0001 PCM
AudioStreaming Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 2 (FORMAT_TYPE)
bFormatType 1 (FORMAT_TYPE_I)
bNrChannels 2
bSubframeSize 2
bBitResolution 16
bSamFreqType 1 Discrete
tSamFreq[ 0] 48000
Endpoint Descriptor:
bLength 9
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 13
Transfer Type Isochronous
Synch Type Synchronous
Usage Type Data
wMaxPacketSize 0x00c0 1x 192 bytes
bInterval 4
bRefresh 0
bSynchAddress 0
bMaxBurst 0
wBytesPerInterval 192
AudioStreaming Endpoint Descriptor:
bLength 7
bDescriptorType 37
bDescriptorSubtype 1 (EP_GENERAL)
bmAttributes 0x00
bLockDelayUnits 0 Undefined
wLockDelay 0x0000
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 4
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 0 [unknown]
bInterfaceProtocol 0
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 1.10
bCountryCode 33 US
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 23
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x84 EP 4 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 16
bMaxBurst 0
wBytesPerInterval 64
Binary Object Store Descriptor:
bLength 5
bDescriptorType 15
wTotalLength 0x0016
bNumDeviceCaps 2
USB 2.0 Extension Device Capability:
bLength 7
bDescriptorType 16
bDevCapabilityType 2
bmAttributes 0x00000006
BESL Link Power Management (LPM) Supported
SuperSpeed USB Device Capability:
bLength 10
bDescriptorType 16
bDevCapabilityType 3
bmAttributes 0x00
wSpeedsSupported 0x000e
Device can operate at Full Speed (12Mbps)
Device can operate at High Speed (480Mbps)
Device can operate at SuperSpeed (5Gbps)
bFunctionalitySupport 1
Lowest fully-functional device speed is Full Speed (12Mbps)
bU1DevExitLat 0 micro seconds
bU2DevExitLat 0 micro seconds
Device Status: 0x0000
(Bus Powered)$ arecord -l
**** List of CAPTURE Hardware Devices ****
card 0: I82801AAICH [Intel 82801AA-ICH], device 0: Intel ICH [Intel 82801AA-ICH]
Subdevices: 1/1
Subdevice #0: subdevice #0
card 0: I82801AAICH [Intel 82801AA-ICH], device 1: Intel ICH - MIC ADC [Intel 82801AA-ICH - MIC ADC]
Subdevices: 1/1
Subdevice #0: subdevice #0
card 1: U15389 [UGREEN 15389], device 0: USB Audio [USB Audio]
Subdevices: 1/1
Subdevice #0: subdevice #0$ lsusb -v 2>/dev/null | grep -A2 "bInterfaceClass.*Audio"
bInterfaceClass 1 Audio
bInterfaceSubClass 1 Control Device
bInterfaceProtocol 0
--
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
--
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0Amazon Ad Copy
I don't know who is plugging this thing into a VR headset.
